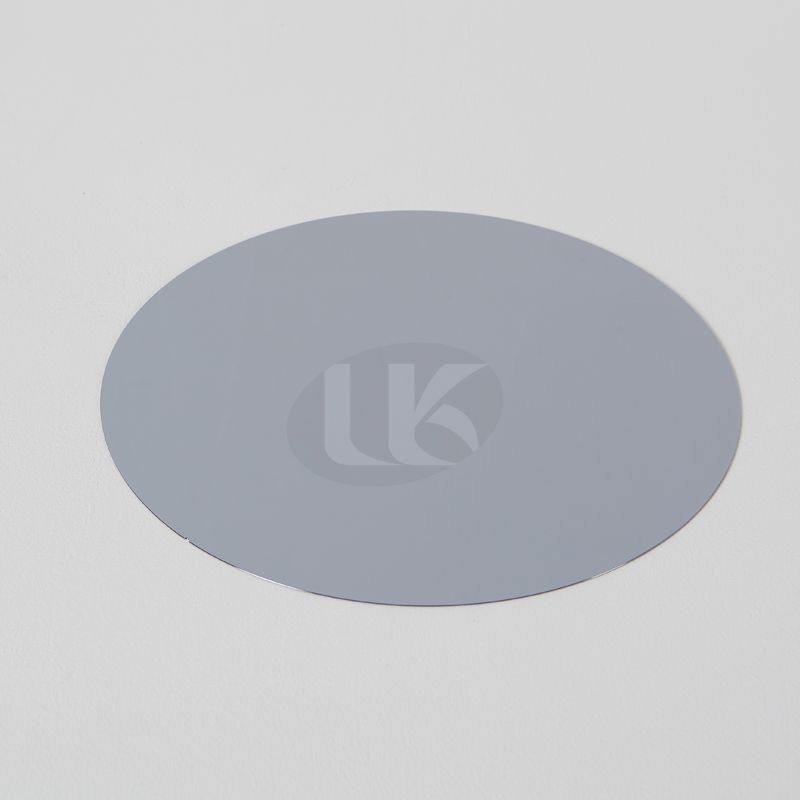

Silicon Wafer 8, 12 inch / ½Ç¸®ÄÜ ¿þÀÌÆÛ

¡á P-type, N-typeÀ¸·Î ±¸ºÐ
¡á 8ÀÎÄ¡ / 12ÀÎÄ¡·Î ±¸ºÐ (Dia Å©±â¿¡ µû¶ó µÎ²² Áõ°¡)
¡á Grade´Â Prime Grade, Test Grade, Fallout Grade·Î ±¸ºÐ
¡á LPCVD, PECVD, Sputtering ÁõÂø Wafer °ø±Þ °¡´É (º°µµ »ó´ã ¹× °ßÀû ÇÊ¿ä)
¡á SK½ÇÆ®·Ð


  Silicon Wafer , P -Type, 1-0-0 (Orientation)
Cat. No Model Description Unit Price(VATº°µµ) ³³±â ºñ°í
W04-171-801 SW8P008P  Silicon Wafer 8inch / P-type 4~12 / SSP 25/PK

¼ÒºñÀÚ°¡ : 2,819,300¿ø

7 Day

W04-171-804 SW8P010P  Silicon Wafer 8inch / P-type 8~12 / SSP 25/PK

¼ÒºñÀÚ°¡ : 2,819,300¿ø

7 Day

W04-171-807 SW8P014P  Silicon Wafer 8inch / P-type 3~25 / DSP 25/PK

¼ÒºñÀÚ°¡ : 2,819,300¿ø

7 Day

W04-171-810 SW8P500TSN  Silicon Wafer 8inch / P-type 1~50 / SSP / Notch 25/PK

¼ÒºñÀÚ°¡ : 1,762,000¿ø

7 Day

W04-171-813 SW8P500TSF  Silicon Wafer 8inch / P-type 1~50 / SSP / Flat 25/PK

¼ÒºñÀÚ°¡ : 1,762,000¿ø

7 Day

W04-171-816 SW8P500TDF  Silicon Wafer 8inch / P-type 1~50 / DSP / Flat 25/PK

¼ÒºñÀÚ°¡ : 2,153,600¿ø

7 Day

W04-171-819 SW12P990F  Silicon Wafer 12inch / P-type 1~99 / Fallout Grade / No COA 25/PK

¼ÒºñÀÚ°¡ : 2,192,800¿ø

7 Day

W04-171-822 SW12P030T  Silicon Wafer 12inch / P-type 1~30 / Test Grade / Particle 120nm 1,000EA 25/PK

¼ÒºñÀÚ°¡ : 2,545,200¿ø

7 Day

W04-171-825 SW12P050T12  Silicon Wafer 12inch / P-type 1~50 / Test Grade / Particle 120nm 50EA 25/PK

¼ÒºñÀÚ°¡ : 3,641,600¿ø

7 Day

W04-171-828 SW12P050T05  Silicon Wafer 12inch / P-type 1~50 / Test Grade / Particle 50nm 50EA 25/PK

¼ÒºñÀÚ°¡ : 4,072,300¿ø

7 Day

W04-171-831 SW12P010P05  Silicon Wafer 12inch / P-type 8~12 / Prime Grade / Particle 50nm 30EA 25/PK

¼ÒºñÀÚ°¡ : 4,698,800¿ø

7 Day

W04-171-834 SW12P020P05  Silicon Wafer 12inch / P-type 14~27 / Prime Grade / Particle 50nm 30EA 25/PK

¼ÒºñÀÚ°¡ : 4,698,800¿ø

7 Day

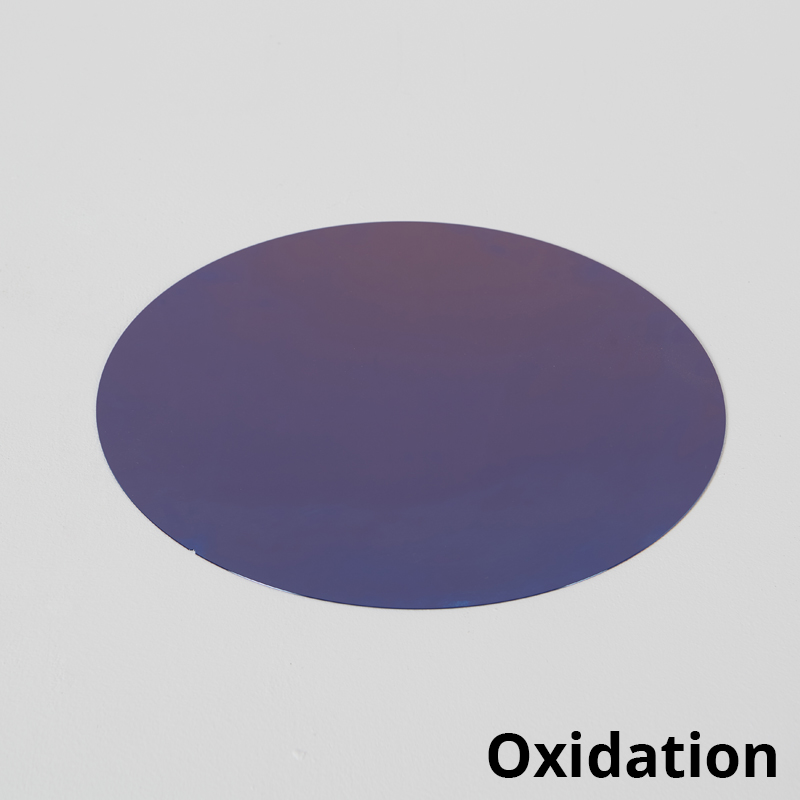

  Silicon Wafer, , P -Type, 1-0-0 (Orientation), Test Grade
Cat. No Model Description Unit Price(VATº°µµ) ³³±â ºñ°í
W04-171-851 SSW8P500TND01  Silicon Wafer, SiO2 8inch / P-type Notch / 0.1um with Dry (1,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,349,400¿ø

15 Day

W04-171-854 SSW8P500TND02  Silicon Wafer, SiO2 8inch / P-type Notch / 0.2um with Dry (2,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,427,700¿ø

15 Day

W04-171-857 SSW8P500TND03  Silicon Wafer, SiO2 8inch / P-type Notch / 0.3um with Dry (3,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,643,100¿ø

15 Day

W04-171-860 SSW8P500TNW03  Silicon Wafer, SiO2 8inch / P-type Notch / 0.3um with Wet (3,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,192,800¿ø

15 Day

W04-171-863 SSW8P500TNW05  Silicon Wafer, SiO2 8inch / P-type Notch / 0.5um with Wet (5,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,310,200¿ø

15 Day

W04-171-866 SSW8P500TNW10  Silicon Wafer, SiO2 8inch / P-type Notch / 1.0um with Wet (10,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,643,100¿ø

15 Day

W04-171-869 SSW8P500TNW15  Silicon Wafer, SiO2 8inch / P-type Notch / 1.5um with Wet (15,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,878,000¿ø

15 Day

W04-171-872 SSW8P500TNW20  Silicon Wafer, SiO2 8inch / P-type Notch / 2.0um with Wet (20,000A) 25/PK

¼ÒºñÀÚ°¡ : 4,189,800¿ø

15 Day

W04-171-875 SSW8P500TFD01  Silicon Wafer, SiO2 8inch / P-type Flat / 0.1um with Dry (1,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,349,400¿ø

15 Day

W04-171-878 SSW8P500TFD02  Silicon Wafer, SiO2 8inch / P-type Flat / 0.2um with Dry (2,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,427,700¿ø

15 Day

W04-171-881 SSW8P500TFD03  Silicon Wafer, SiO2 8inch / P-type Flat / 0.3um with Dry (3,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,643,100¿ø

15 Day

W04-171-884 SSW8P500TFW03  Silicon Wafer, SiO2 8inch / P-type Flat / 0.3um with Wet (3,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,192,800¿ø

15 Day

W04-171-887 SSW8P500TFW05  Silicon Wafer, SiO2 8inch / P-type Flat / 0.5um with Wet (5,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,310,200¿ø

15 Day

W04-171-890 SSW8P500TFW10  Silicon Wafer, SiO2 8inch / P-type Flat / 1.0um with Wet (10,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,643,100¿ø

15 Day

W04-171-893 SSW8P500TFW15  Silicon Wafer, SiO2 8inch / P-type Flat / 1.5um with Wet (15,000A) 25/PK

¼ÒºñÀÚ°¡ : 2,878,000¿ø

15 Day

W04-171-896 SSW8P500TFW20  Silicon Wafer, SiO2 8inch / P-type Flat / 2.0um with Wet (20,000A) 25/PK

¼ÒºñÀÚ°¡ : 4,189,800¿ø

15 Day

W04-171-899 SSW12N1000  Silicon Wafer, SiO2 12inch / P-type Notch / 0.1um (1,000A) 25/PK

¼ÒºñÀÚ°¡ : 3,328,300¿ø

15 Day

W04-171-902 SSW12N2000  Silicon Wafer, SiO2 12inch / P-type Notch / 0.2um (2,000A) 25/PK

¼ÒºñÀÚ°¡ : 3,406,600¿ø

15 Day

W04-171-905 SSW12N3000  Silicon Wafer, SiO2 12inch / P-type Notch / 0.3um (3,000A) 25/PK

¼ÒºñÀÚ°¡ : 3,524,100¿ø

15 Day

W04-171-908 SSW12N4000  Silicon Wafer, SiO2 12inch / P-type Notch / 0.4um (4,000A) 25/PK

¼ÒºñÀÚ°¡ : 3,641,600¿ø

15 Day

W04-171-911 SSW12N5000  Silicon Wafer, SiO2 12inch / P-type Notch / 0.5um (5,000A) 25/PK

¼ÒºñÀÚ°¡ : 3,759,000¿ø

15 Day
